製品詳細
起源の場所: 中国、河南省
ブランド名: ZS
証明: API
モデル番号: 20000 pisへの2000psi
支払いと送料の条件
最小注文数量: 1
価格: negotiable
パッケージの詳細: 金属または木製のケース
受渡し時間: 15営業日
支払条件: T/T
供給の能力: 1000セット/月
応用: |
チョーク弁 |
保証: |
1。5年 |
仕事のプレッシャー: |
2000~15000のPSI |
証明: |
API |
コアコンポーネント: |
軸受け、変速機、圧力容器 |
カスタムオーダー: |
鍛造 |
特徴: |
x-masの木 |
生産能力: |
1000セット/年 |
証明書: |
ISO、API、等。 |
MOQ: |
1個 |
材料: |
炭素鋼、合金鋼、ステンレス鋼、等。 |
応用: |
チョーク弁 |
保証: |
1。5年 |
仕事のプレッシャー: |
2000~15000のPSI |
証明: |
API |
コアコンポーネント: |
軸受け、変速機、圧力容器 |
カスタムオーダー: |
鍛造 |
特徴: |
x-masの木 |
生産能力: |
1000セット/年 |
証明書: |
ISO、API、等。 |
MOQ: |
1個 |
材料: |
炭素鋼、合金鋼、ステンレス鋼、等。 |

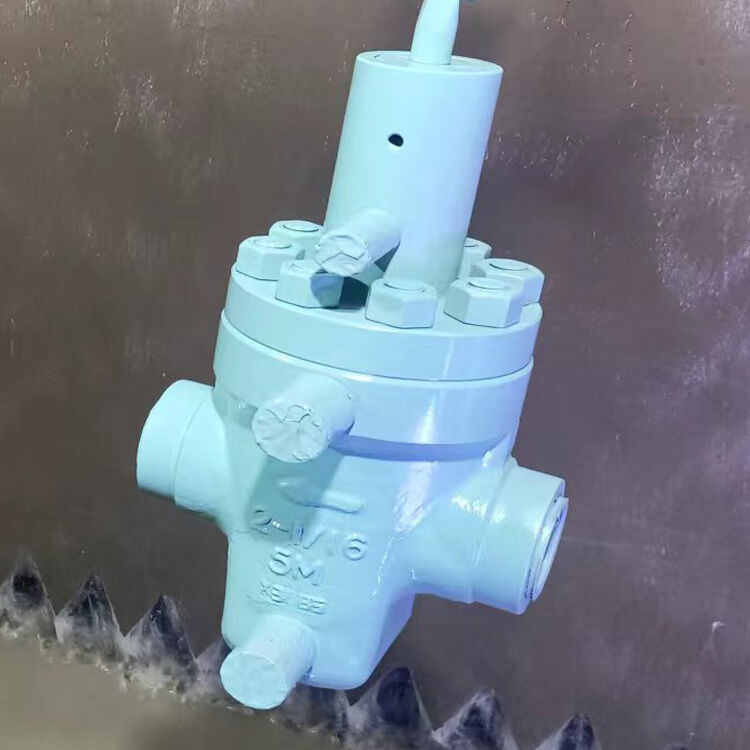

Choke Valve
The choke valve,a main component of Christmas trees and manifolds,is designed to control production rate of the oil well and it's working pressure rating up to 15000psi.Choke valve is classified into positive and adjustable . According to the structure,the adjustable choke valve is divided into pin type, plunger and hole plate. According to the operation forms can be divided into manual and hydraulic. The design and manufacture in accordance with API 6A,API 16A,API 16C. Choke valve end connection type was used by the union connection or flange connection. Adjustable choke valve by adjusting the orifice size to achieve the purpose of adjusting flow rate pressure.
Features
1. Fitted with a valve-opening indicator;
2. Designed with relief valve;
3. Designed with plane thrust bearing structure;
4. Designed with metal-to-metal sealing structure;
5. Fitted with valve stem sealed by lip-shaped packing made from special material;
6. Made of high wear-resisting and corrosion-resisting materials, both the valce core and bean being durable;
7. Designed and manufactured strictly in accordance with API Spec 6A and NACE MR-0175 standards.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
